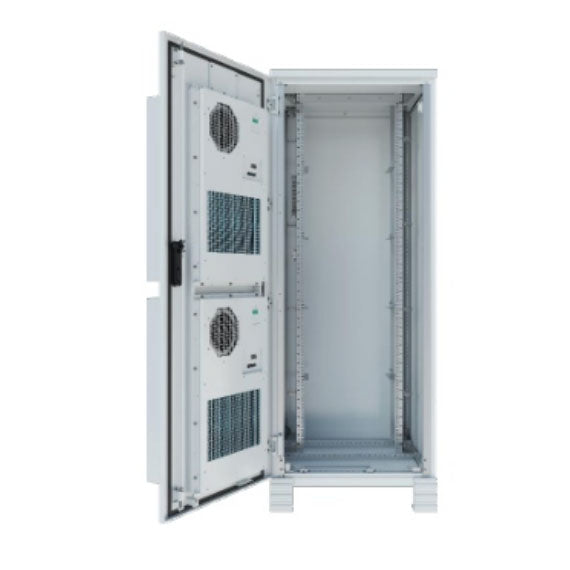

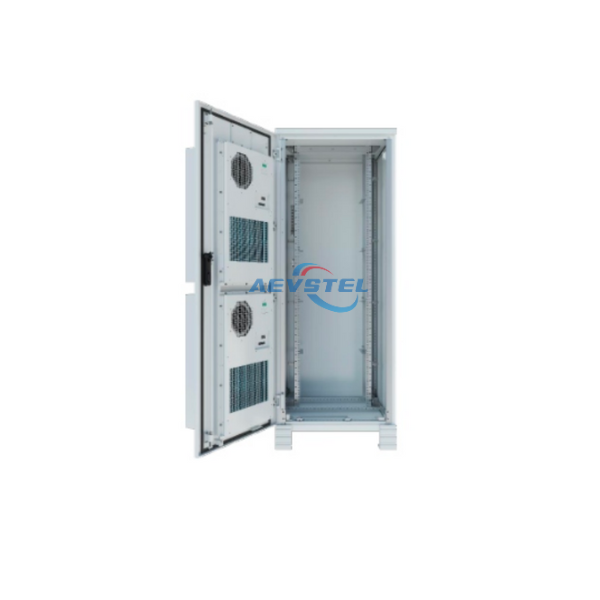

Modular Energy Storage Cabinet
Modular Energy Storage Cabinet
- Smart Screen-Brushing Result Instant Display
- Ultra-Quiet Technology (<45dB)
- 84,000 Movements/min Maglev Motor
- 4 Modes and 32 Intensities for
- Clean Mode
- Brushing Plan Customization APP
- Dupont Diamond &W Shape Bristles
- Up to 35 Days Battery Life
- IPX7 Waterproof
Get a Quote 📧
Technical Information
|
Item |
Speci. |
|
Model number: |
AS02 |
|
Material: |
SGCC |
|
Color |
RAL7035 |
|
Protection Category: |
IP55 |
|
Finish: |
Electrostatic Powder Paint |
|
Packaging: |
Assembled |
◆Used for New-built outdoor 2/3/4/5G wireless site, Large user space, up to 40U.
◆With 48VDC air conditioner, the cabinet cooling is more reliable.
◆Good insulation with PIR Foam
◆Easy to deploy,single cabinet can be assembled in 15 minutes by 2 persons
◆Intelligent operaton and maintenance;support comprehensive intelligent monitoring, and the operation and maintenance support system is intelligent
◆Smooth exansion of cooling capacity:expansion interface is reserves on the door, an extra DC air conditioner can be installed, supporting 6000W in maximum.
|
Specificatons |
AS02 |
|
|
System |
Dimension(W*D*H) |
Cabinet: 750mm × 750mm × 1850mm (excluding base) |
|
Temperature control mode |
Default: 3000W DC air conditioner (another 3000W DC air conditioner can be |
|
|
Installation mode |
Grounding |
|
|
Cabling mode |
At the bottom, inlet/outlet downwards |
|
|
Maintenance mode |
In front |
|
|
Protection Level |
IP55 |
|
|
Cabinet Material |
Sandwich steel panel |
|
|
User Space |
40U, 19-inch bracket |
|
|
Environment |
Operating Temperature |
-40℃ to +45℃ (+ solar radiation) with lead-acid battery |
|
Storage Temperature |
-40℃ to +70℃ |
|
|
Operating humidity |
5% - 95% (non-condensing) |
|
|
Altitude |
0 - 4000m (High temperature derating in the environment of 2000m - 4000m, the |
|
Trusted by 100+ customers: Quality you can rely on
Aevstel products are characterized by stability, reliability, flexible solutions, and an elegant design, meeting the diverse needs of the international market for information technology enclosures.
