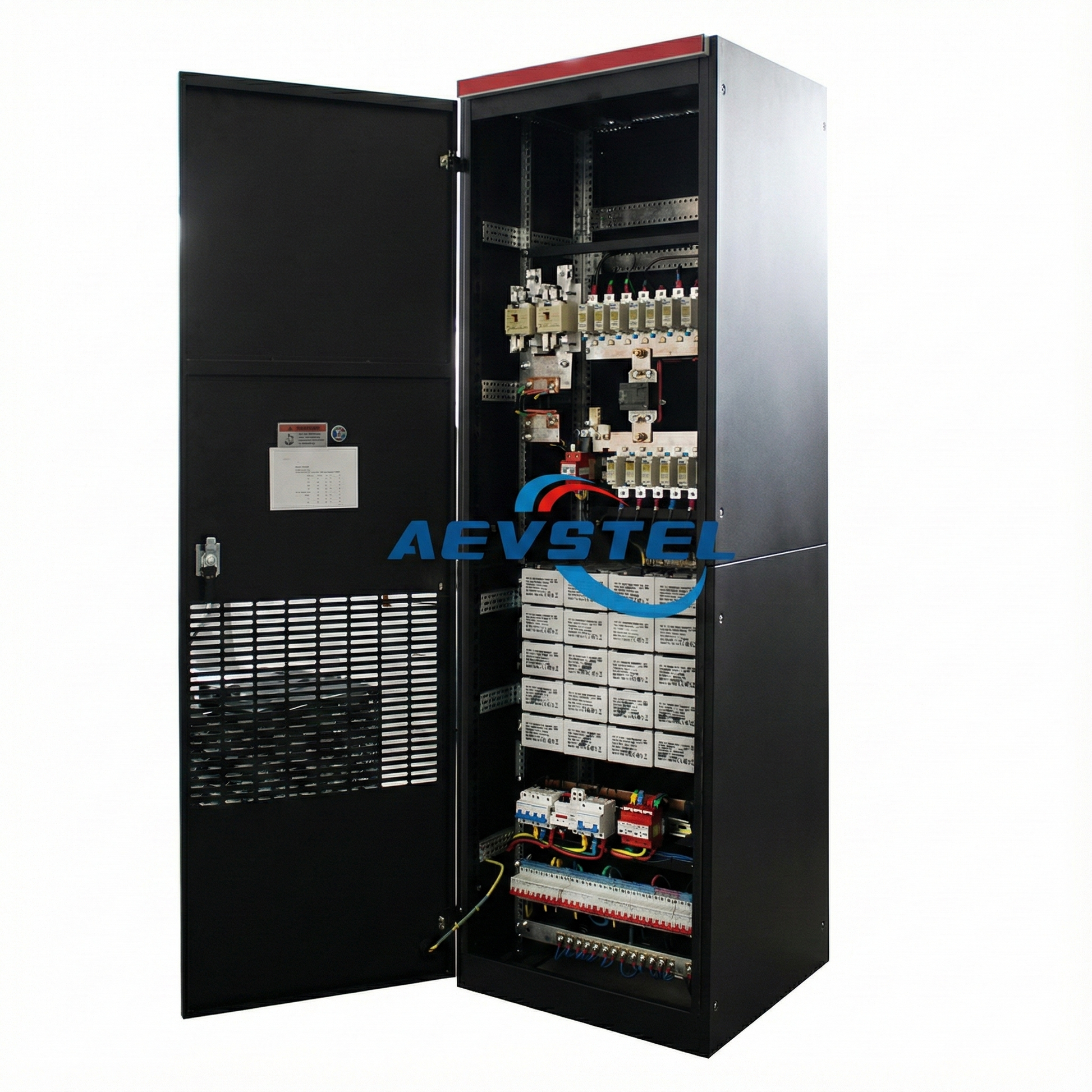

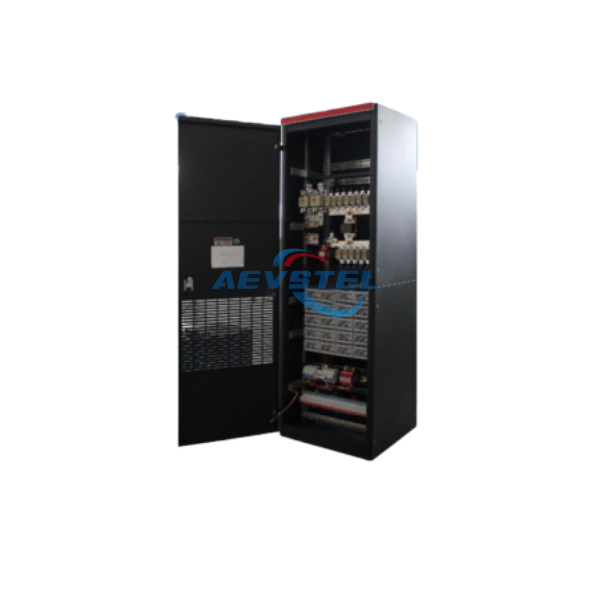

Indoor 19inch Telecommunications Power Systems 42U
|
Item |
Speci. |
|
Model number: |
CS03 |
|
Material: |
SPCC or SGCC |
|
Color |
RAL7035 or RAL9005 |
|
Protection Category: |
|
|
Finish: |
|
|
Packaging: |
|
Material :SPCC or SGCC
Color:RAL7035 or RAL9005
Design Standards:IEC/EN60950
Extreme wide input voltage:85V to 300VAC
Extreme wide operation temperature:-30℃ to +65℃
System rated capacity:'53.5V DC/1000A
Highlights
·Cabinet type design
·Customized size available upon request
·Easy maintenance: hot plug rectifier module and fully front-access maintenance system for wall against or corner mounting
·Advanced battery management improves battery lifespan, especially suitable for poor AC mains application
·Extreme wide input voltage: 85V～300V AC
·Extreme wide operation temperature: -30℃～+65℃
·High/standard efficiency rectifier modules are compatible
·6U height compact design
·System rated capacity: -53.5V DC/1000A
·Whole monitor ports, RS232/485/SNMP, dry contactors
·LCD display with a state-of-the-art interface allows simple and convenient local set up, control and remote monitor
· Design standards: IEC/EN60950
|
Technical Features |
ASC01 |
|||
|
Power Specifications |
||||
|
  |
Specfication |
Remark |
||
|
Input voltage |
85to300V/45to65Hz |
TN/TT grounding system |
||
|
Output voltage |
-42to58.5V |
Nominal-53.5V |
||
|
Rectifier Power |
3000W |
Power3000 |
||
|
Surge current capacity |
Nominal 20kA(8/20us),Max.40kA |
AC inputsurge protection |
||
|
  |
Nominal 10kA(8/20us),Max.20kA |
DC output surge protection |
||
|
Mechanical Specifications |
||||
|
  |
Dimension/mm |
Weight/kg |
||
|
Subrack |
465X378X400 |
/ |
||
|
Rectifier module |
84X106X242 |
2.4 |
||
|
Monitor |
85X230X42.5 |
0.8 |
||
|
Battery Chamber |
/ |
/ |
||
|
Mounting |
Grounding 600X600X2200 |
/ |
||
|
Operation Ambient |
||||
|
Item |
Specifications |
Remark |
||
|
Storage temperature |
-40~+70℃ |
/ |
||
|
Operation temperature |
-30~+65℃ |
/ |
||
|
Safety |
/ |
according to EN60950 and IEC60950 |
||
|
Communication |
RS232+dry contact+SNMP |
Non-condensing |
||
|
Operation moisture |
10~95% |
/ |
||
|
System Configuration |
||||
|
Model |
DC Capacity |
Rectifiers |
Monitor |
Battery Access |
|
ASPower481000C |
48V/1000A |
1 to 20 units |
AS2000 |
1 to 2 strings |
|
Distribution |
||||
|
  |
ASpower481000C |
Remark |
||
|
AC input |
100A/3P*2 |
/ |
||
|
Battery |
500A*2 |
/ |
||
|
DC output |
160A*5+63A*2 |
LLVD standard configuration |
||
|
/ |
100A*6 |
BLVD standard configuration |
||
